Specifying the Random Effect Structure in Linear Mixed Effect Models for Analyzing Psycholinguistic Data

Linear Mixed Effects Models

A LMEM can be formally specified as follows,

In Equation (1), X is a design matrix encoding all factor contrasts and predictors, which is multiplied by the vector of population coefficients (β) containing the overall intercept and main-effect slope(s). What differentiates a LMEM from linear regression is the term Zb, where Z is another design matrix and b is a vector of subject and item random effects assumed to be normally distributed with mean 0 and variance-covariance of the two random effects. These random effects adjust the intercept and/or slope for each subject and each item. This might be clarified by an example using different notation. The term ε is the residual errors that are assumed to follow a normal distribution with mean 0 and variance of σ².

If a hypothetical study were both within-subjects (i.e., each subject sees all items) and within-item (i.e., each item occurs in all experimental conditions), the corresponding LMEM could be expressed as follows:

In Equation (2), the response of a subject to an item is modeled as the fixed-effect intercept (β₀) and fixed-effect slope (β₁) plus random effects, where “fixed effect” means that the value does not change for different subjects and items. The fixed-effect intercept represents the average response value under one of the experimental conditions, while the fixed-effect slope represents the mean difference between the two experimental conditions (i.e., the overall treatment effect). The random intercepts adjust the baseline response value for each subject (S_0s) and item (I_0i). The random slopes adjust the treatment effect for each subject (S_1s) and item (I_1i). Consequently, a different response is predicted for each unique subject–item combination. While this is the conceptual basis of LMEM, the actual model-fitting procedure does not estimate individual subject and item random effects, instead estimating the population variance-covariance matrices of random subject effects (Equation 3) and random item effects (Equation 4), where ${\tau }_{00}^2$ and ${\omega }_{00}^2$ represent the variances of the by-subject and by-item intercept distributions respectively. The parameters ${\tau }_{11}^2$ and ${\omega }_{11}^2$ likewise represent the by-subject and by-item slope distribution variances. The parameters ρ_s and ρ_i represent the correlation between subject random slopes and intercepts, and item random slopes and intercepts respectively. Formally, these parameters are specified as:

Multiple software packages can implement LMEMs, including SAS (e.g., Yu, 2015), and R (e.g., Bates, Maechler, Bolker, & Walker, 2015). Several books and papers (e.g., Baayen et al., 2008) are often credited with popularizing the use of the R package lme4 (Bates, 2005; Bates, Maechler, Bolker, & Walker, 2015) for applying LMEMs to psycholinguistic data. More recently, promising new tools for fitting LMEMs have become available. For example, MixedModels.jl, an LMEM package coded in the Julia programming language (https://github.com/dmbates/MixedModels.jl). Additionally, LMEMs can be implemented in a Bayesian framework (Sorensen, Hohenstein, & Vasishth, 2016) using the programming language Stan (Stan Development Team, 2016).

Evaluation Criteria

Three evaluation criteria – parameter estimation accuracy, non-convergence rate, and model selection accuracy – were considered to evaluate different random effect structures in LMEMs. We first assessed parameter estimate accuracy of both fixed and random effects under the random effect structures included in the simulation study.

The second criterion was non-convergence rate. Non-convergence occurs when the model-fitting algorithm fails to reach a solution within the specified number of iterations or stopping criteria. In real-world experiments, it is closely related to model complexity, especially concerning the random effects structure; non-convergence is more likely to occur as models become more complex, such as when additional parameters are estimated, including item order effects, extra random components.

The third evaluation criterion is model selection accuracy. Model selection means selecting a statistical model from candidate models for interpretation of the results. The candidate models should ideally be grounded in sound theory, and thus researchers should develop several theory-based candidate models for comparison using objective model-selection techniques (Vallejo, Tuero-Herrero, Núñez, & Rosário, 2014). In the LMEM context, model selection aims to determine the fixed and random effects to include in the model. However, the best method for selecting the random component structure is particularly unclear (Barr et al., 2013; Yu, 2015).

Design Factors

A simulation study was designed to investigate non-convergence rates and model selection accuracy in LMEMs. Two factors were varied to generate datasets from nine models (Table 1) with various LMEM structures: (1) number of predictors and (2) random component complexity. The numbers in Table 1 indicate the number of binary predictors (one, two, or three) in the model.

Additionally, the three random effects structures considered in this study – random-intercept-only model, random intercepts and slopes without random correlations in the covariance matrix, and the maximal random effects model – are designated A, B, and C, respectively. The letter designations follow the order of increasing model complexity, i.e., the intercept-only model A was extended to create the no-correlation model B by adding by-subject and by-item random slopes. The introduction of correlations between random intercepts and random slopes gives the maximal model C. These correlation coefficients represent conceptually the pairwise relatedness between random intercepts and slopes. They are part of the off-diagonal terms in the random effect covariance matrices. In the three-predictor maximal (C3) model, the random correlation coefficients add 56 parameters compared to the three-predictor no-correlation (B3) model.

The combination of number of predictors and random effect component letter creates unique identifiers for each model. For example, the random-intercept-only model with two predictors is labeled A2. In each of the nine simulation conditions and generating models, both the number of subjects and items was 24, equivalent to the larger-sample conditions in Barr et al. (2013).

Analysis

The simulation design included nine combinations of the levels of the two manipulated factors. As in Barr et al. (2013), all predictors were binary and deviation coded (-0.5, 0.5). Generated models with multiple predictors also included all possible two- and three-way interactions in both fixed and random components. As in Barr et al. (2013), all fixed-effect parameters were set to 0.8. The parameter sampling ranges from Barr et al. (2013) were used to maximize comparability of results. However, for maximal models with more than one fixed effect, independent random sampling of random effect variances and correlation coefficients can produce covariance matrices that are not positive definite. To circumvent this problem, we instead randomly sampled the eigenvalues of the random component covariance matrix, then simulated the covariance matrix from these eigenvalues (Varadhan, 2008). The eigenvalues were restricted such that the random effect variances did not exceed 3, the upper limit of the variance sampling range used in the non-maximal models. The parameters used in data simulation are summarized in Table 2.

After generating 1,000 datasets from each of the nine models A1 through C3, each dataset was fit with four models differing in complexity of the random component. The simplest model had no random component, i.e., a fixed-effects-only regression model. This basic model was included to provide an additional candidate for model selection, and so that all LMEMs considered would have a simpler alternate model. In all fitted models, the fixed-effect structure was specified such that the fitted model included the same number of predictors and interactions as the model from which the data were generated.

From each fitted model, we recorded model convergence and the model’s AIC (Akaike, 1974) and BIC (Schwarz, 1978). A model was recorded as not converging if the model-fitting process returned a convergence warning message based on lme4’s default convergence criteria; otherwise, the model was considered to have converged. To formally test the effects of our experimental factors on convergence, we performed logistic regression with model non-convergence as the outcome variable (1 = non-convergence, 0 = convergence). The number of predictors and classifications of fitted models (i.e., underfit/true model/overfit) were also included as predictors to capture the possible effect of the number of predictors and model mismatch on non-convergence.¹

We also performed logistic regression to evaluate the effects of our experimental factors on whether a fitted model was “selected” using AIC and BIC from the candidate models (i.e., the model had the lowest IC value). In each regression analysis, the outcome variable was a binary variable in which 1 represented selection using the particular IC. For the analysis, a model was first fit containing model match, number of predictors (as two dummy-coded variables), and generated model (as two dummy-coded variables) as predictors.

All LMEMs were fit using the lmer function of the R package lme4 version 1.1-7 in R version 3.1.3 (R Core Team, 2013). All default settings of the function were used, including the REML estimation method, the optimizer BOBYQA with the default tolerance value of 0.02, and default starting values.

Accuracy of Parameter Estimation

Table 3 presents mean fixed-effects estimates and corresponding standard errors (SE) for all nine generated models. The results show that the mean fixed-effects estimates were close to the true values (0.8) under most conditions, indicating that they are robust to changes in the random effects specification. This result is consistent with previous studies demonstrating robust fixed-effects estimates when the outcome variable is continuous and normally distributed (McCulloch, Searle, & Neuhaus, 2008; Verbeke & Lessafre, 1997).

Figures 1, 2, and 3 display the mean estimates of each random component variance in the nine generated models, with error bars representing SE. The expected value of all random effect variances is 1.5, as the variances were randomly sampled from U(0,3). The Figures reveal that the random effect variances ( ${\tau }^2$ and ${\omega }^2$) were also well recovered.

Click to enlarge

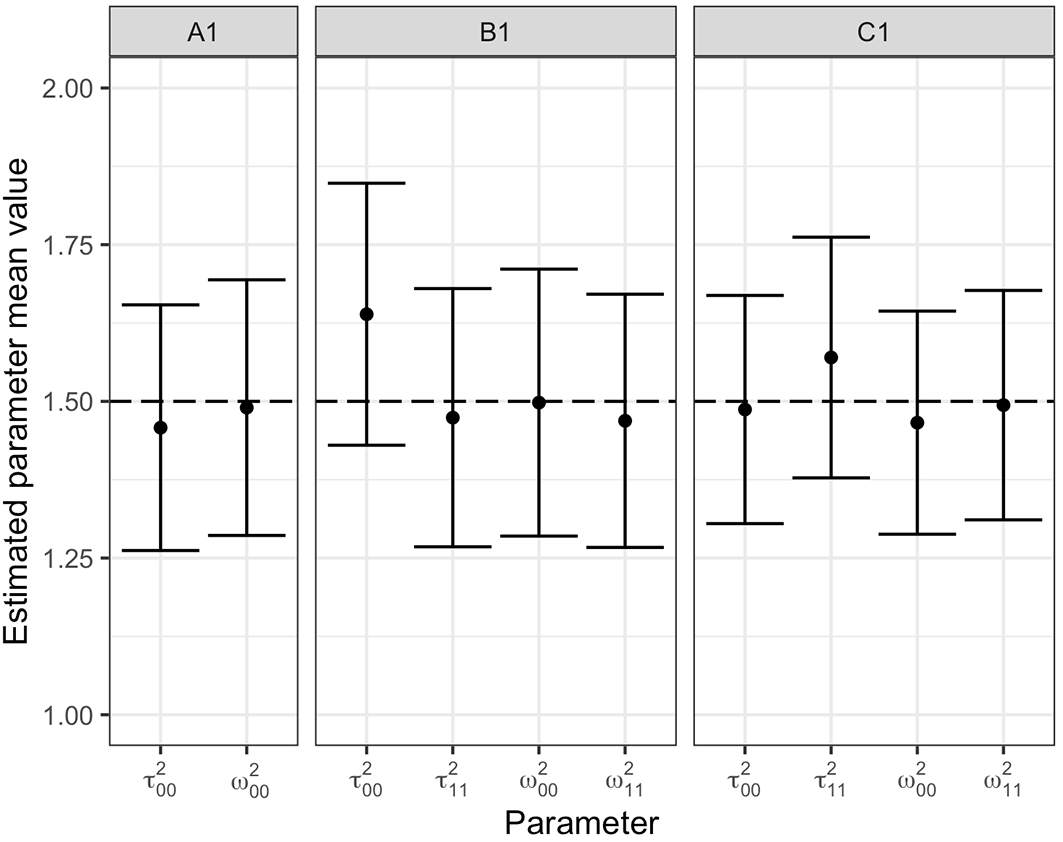

Figure 1

The Mean Estimates of Random Effect Variances for All 1-Predictor Generated Models (A1, B1, and C1), Error Bars Represent 1 Standard Error (SE)

Click to enlarge

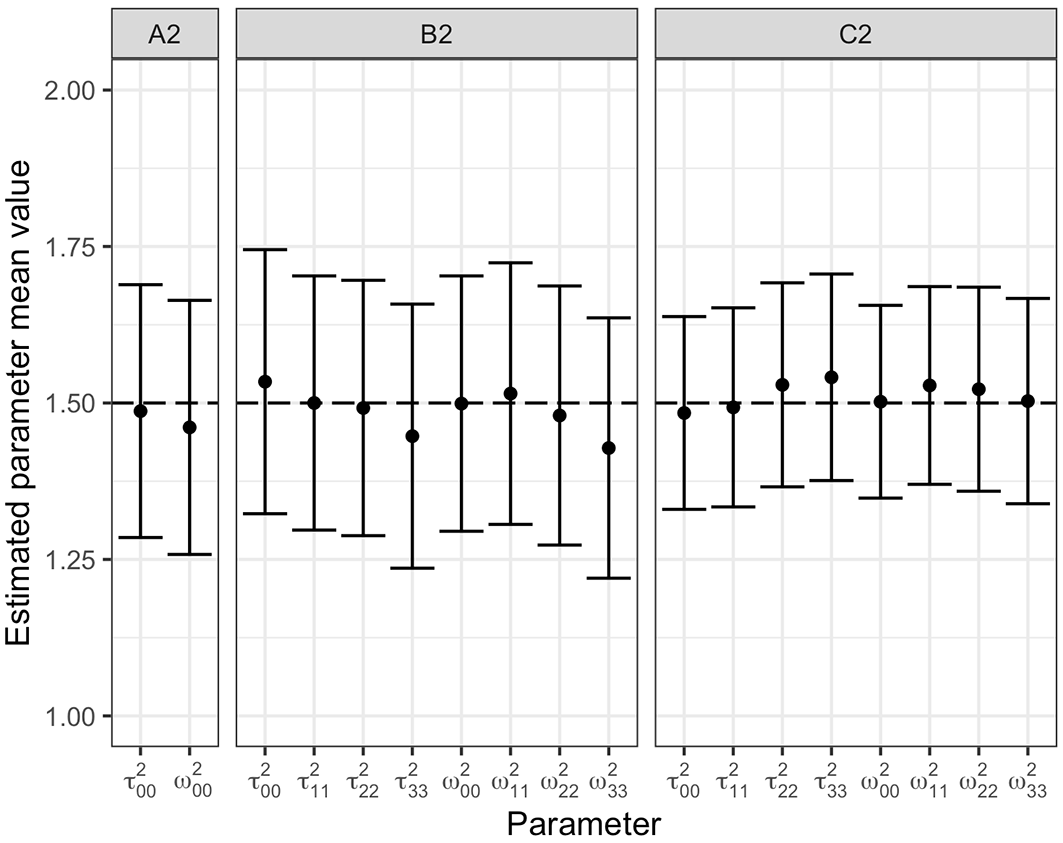

Figure 2

The Mean Estimates of Random Effect Variances for All 2-Predictor Generated Models (A2, B2, and C2), Error Bars Represent 1 Standard Error (SE)

Click to enlarge

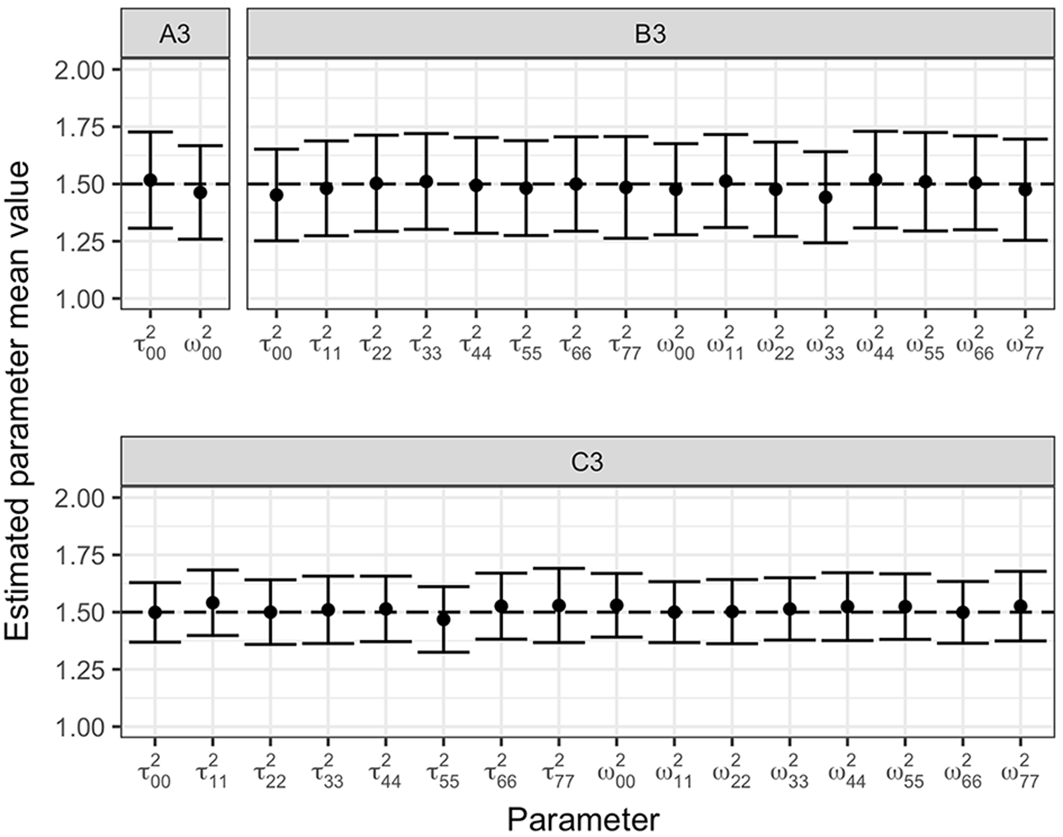

Figure 3

The Mean Estimates of Random Effect Variances for All 3-Predictor Generated Models (A3, B3, and C3), Error Bars Represent 1 Standard Error (SE)

Figure 4 shows that the average values of correlations between random intercepts and random slopes are all close to zero and the distributions nearly span the full range of possible values (-1 to 1), indicating that the data was successfully generated with random effect correlations.

Click to enlarge

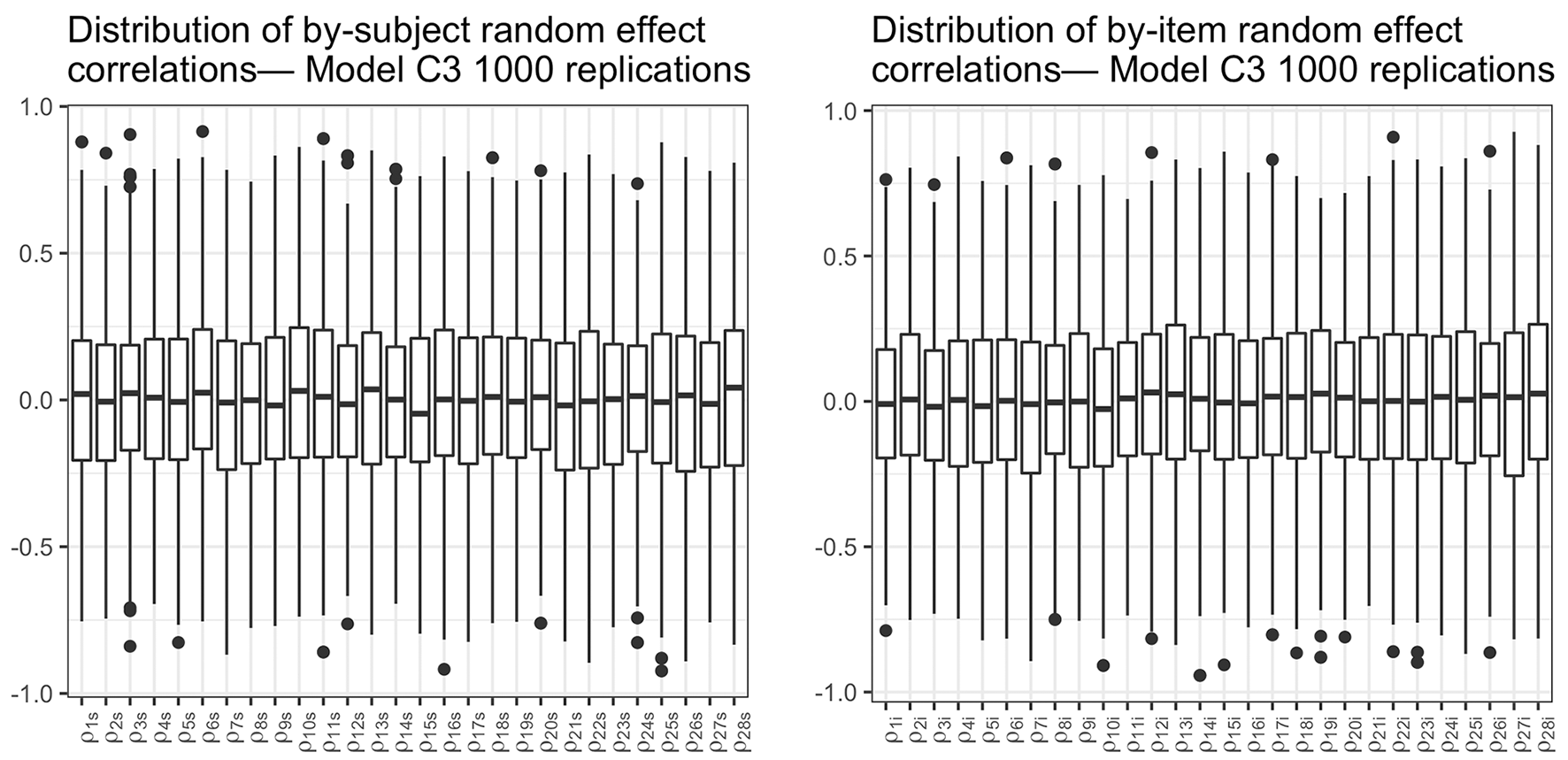

Figure 4

Distribution of Model Estimates for All 28 by-Subject (Left) and by-Item (Right) Random Correlation Coefficients

Model Non-Convergence Rates

Table 4 summarizes the model non-convergence rate for each combination of generated model, fitted model, and number of predictors. Each number represents the proportion of simulation runs in the corresponding category that did not reach convergence. None of the random-intercept-only models (A1, A2, and A3) fit to data experienced non-convergence. For no-correlation models (B1, B2, and B3), non-convergence rates were relatively low, ranging from 0 to .023. However, there is a steady increase in the non-convergence rate of B models fit to A datasets with increasing number of predictors, from .002 in the one-predictor condition to .023 in the three-predictor condition. Some non-convergence occurred in all conditions fitting the maximal (C) model, with a dramatic increase in non-convergence for C models fit to A datasets as the number of predictors increased.

Each pair of generated and fitted models can be classified as underfit, overfit, and true models. The diagonal of the table corresponds to fitting the “true model” (i.e., the fitted model is the same as the generated model). Non-convergence rates are relatively low in the true model scenarios, despite a slight increase as additional predictors are added. Below the diagonal, which represents when models were underfit (i.e., the model was less complex than the data), non-convergence only occurred twice, so the non-convergence rate is effectively zero regardless of the number of predictors. Almost all cases of non-convergence are above the diagonal, representing when models were overfit (i.e., the model was more complex than the data). Overfit models suffered from higher non-convergence rates than other model pairs with the same number of predictors, and also displayed a trend of dramatically increasing non-convergence rates with the inclusion of additional predictors. When displayed visually (Figure 5), it is even more apparent that non-convergence occurs most often for maximal models with multiple predictors, especially when overfitting.

Click to enlarge

Note. The letters in grey boxes at the top of each panel represent the generated models, while the letters along the X-axis correspond to the fitted models. The different lines represent the number of predictors in the model (1, 2, or 3).

Figure 5

The Model Non-Convergence Rates of All 27 Combinations of Generated and Fitted Models

In Table 4, the upper left block summarizing the one-predictor models corresponds to the models used in Barr et al. (2013). While the authors did not formally investigate non-convergence, they mentioned that convergence rates exceeded 99% in all experimental conditions, with the lowest rate being 99.61% convergence. Thus, our observed non-convergence rates in the one-predictor models are consistent with those observed by Barr et al. (2013). It is only in the two- and three-predictor conditions, which go beyond the scope of Barr et al.’s study, that we observed a dramatic increase in model non-convergence. Specifically, when data generated from A models were fit with a C model, representing substantial model overfitting, the rates of non-convergence were 33.1% and 95.4% in the two- and three-predictor conditions respectively.

Logistic regression analysis reveals that both the number of predictors and the relationship between the generated and fitted models are independently significant predictors of model non-convergence. Models are more likely to result in non-convergence when overfit, as compared to the true model, by a factor of nearly 50 (Z = 11.50, p < .001). Non-convergence was also significantly more likely for three-predictor models (Z = 4.85, p < .001) and significantly less likely for one-predictor models (Z = -13.38, p < .001) in comparison to two-predictor models, reflecting the observed trend of increasing non-convergence as the number of predictors increased.

Model Selection Using Information Criteria

In addition to model convergence, another research concern of this paper is using information criteria (AIC and BIC) to select the best-fitting model. In each replication, four models differing only in complexity of the random-effects component were fit to a dataset, one of which corresponded to the “true” model. Theoretically, the true model should be the best fitting of the four candidate models. Figure 6 displays the proportion of simulation runs in which the true model was selected (i.e., had the lowest IC value) among the four candidate models using AIC and BIC (hereafter “true model selection rate”).

Click to enlarge

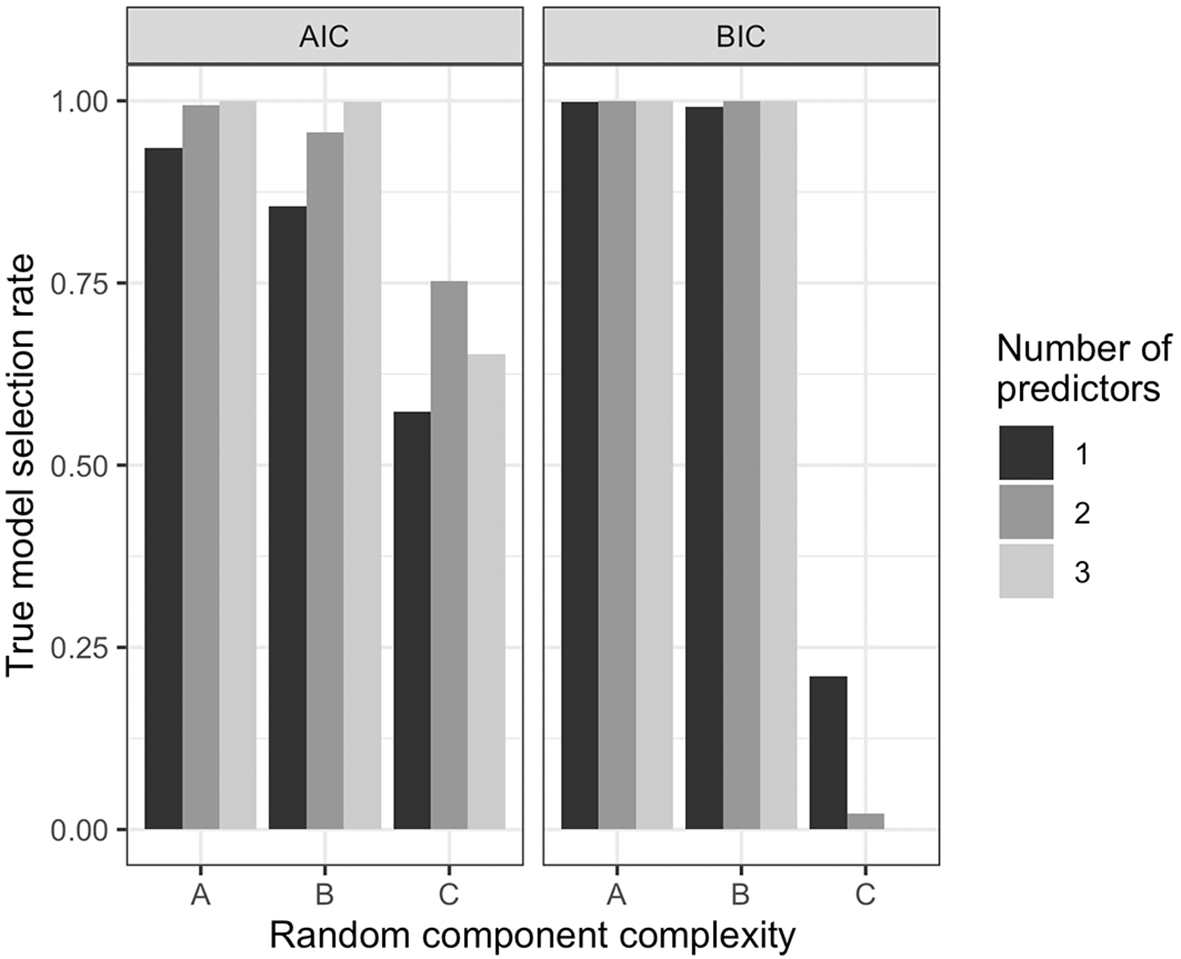

Figure 6

True Model Selection Rate Using AIC and BIC for All Nine Generated Models

Using AIC, the true model selection rate was generally high (> 85%) for random-intercept-only (A) and no-correlation (B) models, with the rate for models A3 and B3 reaching 100% and 99.9% respectively. For maximal (C) models, the rate was lower, ranging from 57.3% to 75.3%. The overall true model selection rate for AIC was 85.8%. Using BIC, the true model selection rate was uniformly high (> 99%) for A and B models. However, the rate for C models was substantially lower, ranging from 21% (C1) to 0% (C3). When the true model was not selected in C model conditions (except two simulation runs in the C1 condition), the corresponding B model was selected by BIC. The overall true model selection rate for BIC was 69.1%. So overall, AIC and BIC selected the true model in the majority of cases, otherwise selecting the next simplest model.

Logistic regression was also implemented to predict model selection using AIC. A logistic regression model was first fitted containing model match, number of predictors (as two dummy-coded variables) and generated model (as two dummy-coded variables) as predictors. The saturated model containing model match and number of predictors as parameters was subjected to model simplification via stepwise Likelihood-ratio test (LRT), resulting in the final model with significant effects for Model Match, one-Predictor, and their interaction (Table 5).

The final model includes model match and one-predictor and their interaction. Model Match is the primary variable that predicts AIC selection, with the true model being more likely to be selected by a factor of 146.16 (Z = 85.80, p < .001). The significant negative coefficient of the Model Match × One-Predictor interaction indicates that the true model was significantly less likely to be selected by AIC when the model only contains one predictor (Z = -18.28, p < .001). In other words, AIC was less accurate at selecting the true model in one-predictor conditions compared to two-predictor conditions.

The logistic regression results for BIC differed more starkly based on generated model than by number of predictors. Therefore, model match and generated model were used as predictors. The saturated model was subjected to model simplification via stepwise LRT, resulting in the final model containing Model Match, C-Generated (a binary dummy variable indicating whether the data were generated from a maximal model), and the Model Match × C-Generated interaction (Table 6).

The true model is extremely unlikely to be selected for C datasets (Z = -32.79, p < .001), reflecting the extremely low rates of true model selection observed for maximal (C) datasets. Since the model includes an interaction, coefficients for the single predictors can be interpreted as the effect when the variable with which it interacts is 0. Therefore, the coefficient of Model Match represents the effect of model match for random-intercept-only (A) and no-correlation (B) datasets, indicating that BIC is almost guaranteed to select the true model in the A and B model conditions (Z = 28.39, p < .001). Finally, the significant coefficient of C-Generated represents the very high odds that BIC will select a model other than the true model in the case of C datasets (Z = 16.49, p < .001).
